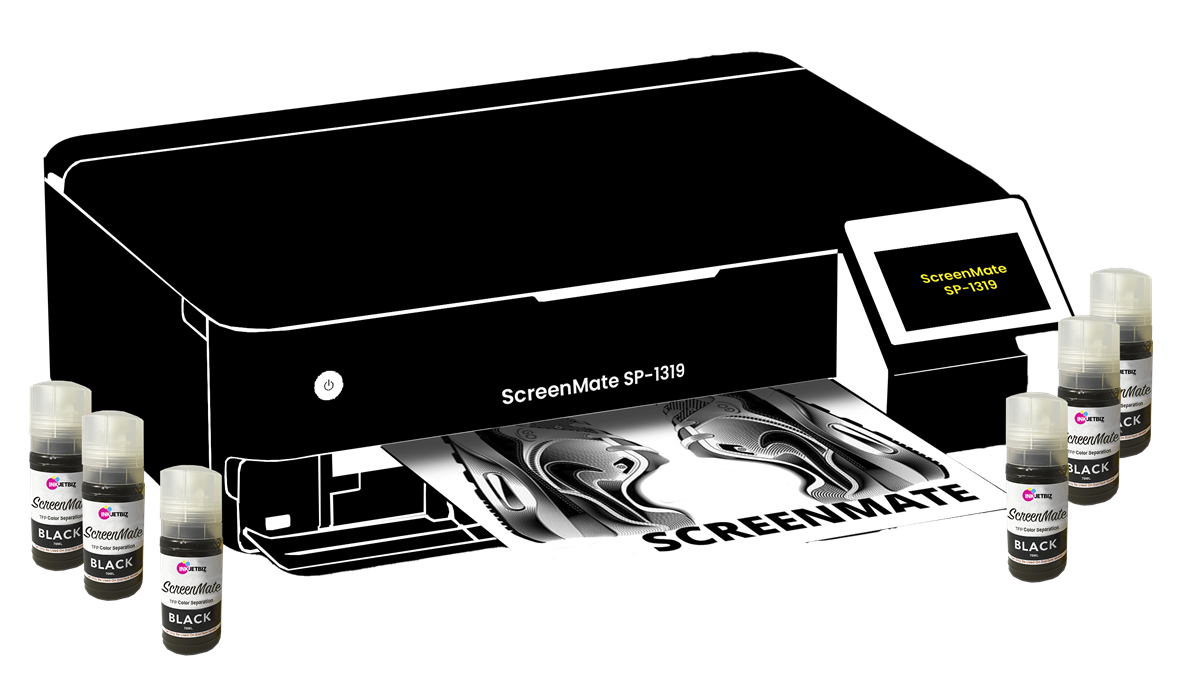

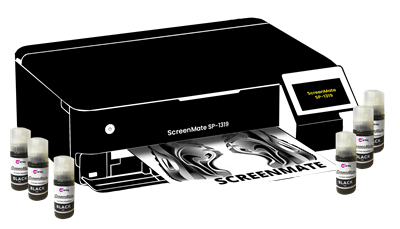

GO ScreenMate SP-1319 13" x 19" ScreenMate Screen Print Color Separation System

Availability: Usually Ships in 24 to 48 Hours
Product Code: P-300-8550-SP

GO ScreenMate SP-1319 | Screen Print System | 13" x 19" Color Separation | Available in PC and MAC Versions

GO ScreenMate SP-1319 fulfills the most common screen print size - 13" x 19". Our desktop inkjet system for color separation includes the following:

GO ScreenMate SP-1319 (13" x 19") Screen Print Color Separation Printer
Six (6) ScreenMate™ TFP Ink - 70ml Bottles
ScreenMate™ Film - One (1) pack: 11" x 17" (100 Films)
CADLink’s FilmMaker RIP Software- Digital Download (PC/Windows Version)
GO ColorMate SP RIP Software- Digital Download (MAC/iOS Version)
Media Film Guide Sleeves with Tape - 1 Set

Max. Print Width: 13″ x 19″

Paper Sizes: 13″ x 19″ (A3+), 11″ x 17″, A3, Legal, Letter, A4, Executive, 8″ x 10″, 5″ x 7″, 4″ x 6″, 3.5″ x 5″, A6, Half Letter, #10 Envelope, User Defined (2.2″ x 3.4″ to 13″ x 78.7″)

Film Type: GO ScreenMate® Color Separation Screen Print Film

Max. Film Thickness: 1.3mm (Rear Straight Pass)

Input Paper Capacity: Front Tray 1: 20 sheets photo 5×7”, Front Tray 2: 100 sheets plain Letter/A4, Rear: 50 sheets plain or 5 sheets photo A3+, Rear Straight Pass: 1 sheet

Display: 4.3″ Touch LCD

Printer Language: ESC/P-R, ESC/P Raster (Factory Use)

Software Included: Yes–GO ColorMate SP RIP Software (PC or MAC Version), Epson printer drivers, Epson Scan 2, Epson ScanSmart, Epson Photo+

Monthly Duty Cycle: 33,000 Film Per Month / Up to 1,600 Recommended

Minimum Ink Droplet Size: 3 ink Droplet Sizes, as Small as 3.8 Picoliters

Maximum Print Resolution: 5760 x 1440 dpi

ISO Print Speed: Up to 16 ISO PPM (Black)

Ink Type: GO ScreenMate® TFP Color Separation Screen Print Ink – 70ml and 140ml Bottle

Integrated Scanner: Yes–Scanner Type: Color Flatbed/ADF

Max. Scanner Resolution: 1200 x 4800 dpi

Max. Scanner Bed Size: 8.5″ x 14″ (216 x 355.6 mm)

Integrated Copier: Yes–Max. Copy Size: 8.5″ x 14″ (Legal)

Max. Resolution: 9600 dpi interpolated

Mobile Printing Solutions: Epson Connect™ Solutions7 Email Print, Remote Print, Scan to Cloud11 Applications Epson Smart Panel app8, Epson Print Layout app (iOS), Epson Creative Print app Other Apple® AirPrint®, Android printing, Mopria® Print Service Voice Activation9 Siri®, Google Assistant™, Epson Connect, Amazon™ Alexa

Operating Systems: Windows 10 (32-bit, 64-bit), Windows 8.1 (32-bit, 64-bit), Windows 8 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit), Windows Vista® (32-bit, 64-bit), Windows XP SP3 or later (32-bit), Windows XP Professional x64 Edition SP2 or later, Windows Server 2003 SP213 or later, 2003 R2, 2008, 2008 R2, 2012, 2012 R2, 2016, 2019, Mac OS® X 10.6.8 thru 10.15.x14

Connectivity: Hi-Speed USB Wireless Wi-Fi® 512, 802.11 b/g/n/a/ac Wired Ethernet Ethernet (10/100) Wi-Fi Direct®12 Yes Memory Card Slots SD Card, USB

Power Requirements: AC 110–240 V, 0.4 – 0.7 Amps, 50–60 Hz

Dimensions: Printing (W x D x H) 20.6″ x 29.8″ x 16.9″ (523 x 758 x 430mm)

Weight: 24.5 LB (11.1kg) printer only

Eco Features: ENERGY STAR® qualified RoHS Complaint Recyclable product16 Epson America. Inc. is a SmartWay® Transport Partner17

Warranty: One Year Limited Warranty*

GO ScreenMate SP-1319 - Startup Guide

DOWNLOAD GUIDE

For more instructions, visit our Knowledge Base

KEY FEATURES

Includes 13” x 19” (Super A3) GO ScreenMate SP-1319 Printer for Color Separation and Film Positive Imaging
Available in PC or MAC Versions–$1,799 (PC/Windows Version) and $1,889 (MAC Version)
Wi-Fi Enabled Printing with MicroPiezo Printhead Technology
High-Resolution Imaging of Up to 4800 x 1200 dpi for Incredibly Sharp Text and Line Art
Fast Print Speeds--Up to 16 PPM
Intuitive 4.3-inch Color Touch-Screen, Voice-Activated Controls--Simplifies Print Tasks
Cartridge-Free Printing Technology--Quick and Easy Ink Refills
Includes Six (6) ScreenMate™ TFP Ink - 70ml Bottles
ScreenMate™ Inks Absorbs 99.9% of All UV Light and are Made in the USA
Includes ScreenMate™ Film - One (1) Pack: 11" x 17" (100 Films)
ScreenMate™ Film Features 5 Level Microporous Coating for Great Density, Dot Control, and Waterproofing
Media Film Guide Sleeves with Tape - 1 Set
Includes CADLink® FilmMaker RIP Software (PC/Windows Version)
Includes GO ColorMate SP RIP Software (MAC/iOS Version)
Includes Support Plan--Interactive Support with TeamViewer, Online Training Sessions, Online Videos and Warranty
One Year Limited Warranty*
