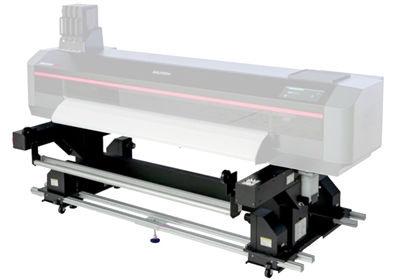

Mutoh XpertJet 1682WR HD Feed and Take-Up System Spare Part
Alternative Views:	Price: $5,646.00 Availability: Usually Ships in 24 to 48 Hours Product Code: SP-002-TUP-HD-XPJ Qty:

DESCRIPTION TECHNICAL SPECS   Mutoh XpertJet 1682WR Printer |64" Heavy Duty Take-Up System | Optional Spare Parts The new XpertJet HD feed and take-up system can hold rolls up to 220 pounds which allows roll to roll XpertJet customers to run heavy rolls flawlessly through their printers! It also comes with adjustable tension bars as well as adjustable feed and take-up roll holders to ensure the system is parallel to the printer’s platen so customers who need to run those long jobs can print with confidence knowing their media will transport through the printer accurately. Compatible Printers XpertJet 64” printers（XPJ-1682SR / XPJ-1641SR / XPJ-1682WR） Drive System DC Geared Motor Drive Feeding and Winding Automatic or Manual Setting by Switching Take-up System Intermittent Drive by Detecting Slack of Media Feed System Intermittent Drive by Detecting Slack of Media Media Tension Control Flag Detection Using 3 Transmission Photoelectric Switches Compatible Media Max. Width: 64” Min. width: 20” Max. Weight: 220lbs or less Max. Roll up Diameter 9.8” or Less Take-Up Core Compatibility 2” or 3” Feeding and Winding Direction Feed System: Print Side Out / Print Side in Take-up system: Print Side Out / Print Side In Max. Paper Core Width 66.8” Take-Up Speed Fixed Power Supply AC100-240±10% Input Frequency 50±1Hz, 60±1Hz Power Consumption Power OFF： 1W or Less Standby： 20W or Less Operating： 140W or Less Consumption Current 100V-240V：1.5A or Less Noise 70dB or Less Recommended Operation Environment Temperature：71.6-86°F Humidity：40-60％RH（Non Condensing） KEY FEATURES Accepts Inside and Outside Wound Materials Relocated Power Switch and Power Plug to Front Control Arm for Easier Access Adjustable Tension Bars Adjustable Feed and Take-up Roll Holders Supports Media Up to 220 Pounds with a Maximum Roll Diameter of 9.8″ or Less Supports Media Up to 64″ Wide SHOP ACCESSORIES Mutoh DH21 Dye Sublimation Ink 2.2 Liter Bag for Mutoh Printers Xpress C-1700 67" 3-in-1 Rotary Transfer Calendar GO Create Pro Software App 1 Year Subscription Mutoh XpertJet 1682WR 64" CMYK x2 Dye Sublimation Printer Add Add Add Add SHOP OTHER ITEMS EPSON 24" Maintenance Ink Tank OEM Maintenance Tank for SC F570/T3170x EPSON SC T3170 / T5170 Rotary Cutter Blade Spare Part Mutoh RJ900X Economy Take-Up System Spare Part EPSON 24" Stand Optional Printer Stand for SC F570/T3170x Add Add Add Add Mutoh Replacement DF-48555 VJ Absorbent Pad A Siser Heat Transfer Pillows Accessories Mutoh Replacement DF-48556 VJ Absorbent Pad B IJB Ink Refill Syringe Dye Sub Accessory Add Add Add Add
