Mutoh XpertJet 1642WR
64" CMYK
Dye Sublimation Printer


Alternative Views:

MSRP: $19,995
-$5,500.00 (Instant Rebate)
*Eligible units must ship by February 29th, 2024, unless backordered.
Price: $14,995.00
Call Us! +1.408.394.7595

Availability: Usually Ships in 1 to 2 Business Days
Product Code: P-002-XPJ1642WR

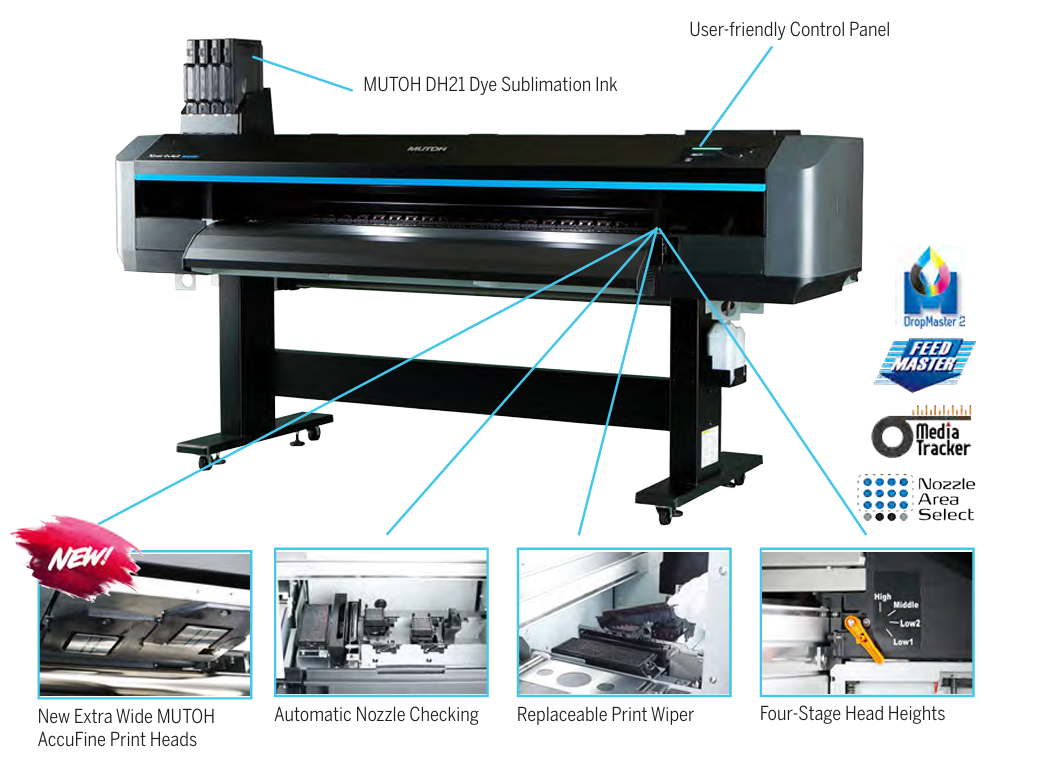

Mutoh XpertJet 1642WR | 64" CMYK | Dual Printhead Dye Sub Printer
The XPJ-1642WR features two brand new ultra-wide Mutoh AccuFine piezo variable drop print heads, installed in a staggered configuration. In combination with Mutoh’s new proprietary i-screen weaving technology, the new print heads will deliver exceptional print quality at higher production speeds time after time.

The newly-developed MUTOH AccuFine print head features 11 percent more nozzles and 33 percent greater nozzle length. This print head improves the accuracy of dot placement by 20 percent over the previous print head. The XPJ-1642WR Pro features automated processes which saves time, increase production and allows for printing on thinner and lighter transfer papers.

The System Includes the Following:

  • 64" Mutoh XpertJet 1642WR Dye Sub Printer
  • Set of Mutoh DH-21 Dye Sub Ink
  • Flexi Dye Sub RIP Software--90 Day Trial

Amazing Jetting Performance
The new AccuFine printhead design features a 33% increase in nozzle length and a 165% increase in high-density nozzle spacing for twice the accuracy compared to the previous design.

[ Left: XPJ-1642WR / Right: Old model ]

Increased Print Speeds for High Volume Productivity
New dual staggered printheads (x2) achieves blazingly fast print speeds. Up to 39m2/hour on Standard Mode Printing (600dpi x 600dpi, 4pass)

Automatic Nozzle Inspection and Nozzle Selection Function
The new automatic inspection technology can detect clogged printhead nozzles and automatically performs cleaning cycles to recover the printheads optimum printing performance.

[With automatic nozzle check, a built-in sensor recognizes nozzle clogging.]

[When nozzle clogging is detected, the automatic cleaning cycle is performed. Successful nozzle recovery will resume printing.]

Nozzle Area Select Technology
If the nozzle clogging is not repaired, only the active nozzles are screened to continue printing. You can reduce the amount of time your work is down. In addition, the automatic nozzle inspection and nozzle selection function reduces errors during unattended/overnight operation.

Precise Worry-Free Media Selection Lever
Reduce the worry of media selection by adjusting the pressure on the media in 4 steps. In addition, thin paper or soft media can also be used.

Multi-Step Pressurization System
Improve the feeding stability of various media. With Mutoh's original multi-stage pressurization mechanism, even thin roll media can be fed smoothly.

DropMaster 2 (Automatic Bi-Directional Alignment with Built-in Color Sensor)
XpertJet has a built-in color sensor for automatic bi-directional alignment, saving you precious time and increasing your efficiency.

[Without DropMaster2 Applied.]

[DropMaster2 Applied.]

Feed Master System (Automatic Media Feed Adjustment)
Print a print pattern and read it by the color sensor on the carriage to automate the paper feed correction. It reduces labor and media loss in the adjustment process.

Media Tracker System (Media Roll Balance Management)
Recognizes the remaining amount of paper by reading the barcode printed on the media after loading the media. Streamline the management of multiple media.

New Media Flange for Quick and Super Easy Installation
Replace media paper rolls with ease. Offers users more convenience in replacing media.

Mutoh Status Monitor (MSM)

Mutoh continues to provide value beyond the box with its updated MUTOH Status Monitor (MSM) system. MSM is lightweight software exclusive to Mutoh. Use MSM to monitor your ink system, heaters, and even check for the latest firmware. The MSM makes your workflow easy by sending you email notifications to alert you with several pre-programmed messages including printer status, ink status, media status, and more.

Download the MSM mobile app to bring all these features with you remotely.

Target Markets
Targeted at the sublimation transfer market, the XpertJet 1642WR dye sublimation printer will deliver high quality graphics for transfer onto all possible flexible and rigid polyester materials: in-store textile décor graphics and displays, soft signage and graphics for events and tradeshows, home decoration, flags and pennants, sports goods, promotional items apparel such as fashion, blouses, sportswear, outdoor jackets and T-shirts. The XPJ-1642WR will also print directly onto closed coated polyester fabrics or mixed fibers.

GO SubliMate™ DX Dye Sub Ink with Self Dispersing Ink Technology--COMING SOON
There are two gold-plated DX piezo printheads mounted in a staggered arrangement, each supplying eight channels of ink. Our SubliMate™ Dye Sub Ink has been specially formulated for the printheads being used by the XPJ1682WR. Imaging up to 1440×1440 dpi, the combination of GO SubliMate™ ink and Mutoh’s DX printheads are a potent combination that provides incredibly rich blacks along with a color gamut not offered by other ink providers.

The new Self-Dispersing ink technology is now part of the GO SubliMate™ dye sublimation ink product line for DX printheads. The significance of self-dispersing particles is that the dye sub particles repel one another and as a result materially increase jetting reliability, image quality, shelf life and color consistency. Traditional dye sub inks have particles that over a period of time, start to combine and eventually cause nozzle dropouts, or worse, complete clogging of the printhead.

  • 64-inch Four (4) Color High Speed Dye Sublimation Printer
  • Newly Developed Staggered Dual AccuFine Printheads
  • Automatic Nozzle Inspection System and Nozzle Area Select
  • Automatic Bi-Directional Alignment with Built-in Color Sensor
  • Includes Set of Mutoh DH-21 Dye Sub Ink (Ink Bags)
  • Includes Flexi Dye Sub RIP Software--90 Day Trial
  • Enhanced Media Handling/Feed Master
  • Unique Multi-Stage Pressure Mechanism--Supports All Types of Dye Sub Papers from Thin to Thick
  • Ultra-Fast Printing--Up to 802 SqFt/Hr
  • High Resolution and High Definition Printing--Up to 1200 DPI
  • Incorporates Variable Drop On-Demand Piezo Drive Method
  • Intelligent Interweave (i2) Technology Eliminates Banding
  • Multi-Language LED Touch Panel Display
  • Smart Communication through Mutoh Status Monitor (MSM)
  • Media Tracker System for Media Roll Balance Management
  • Optional Heavy Duty Take-Up System
  • Optional CADLink Digital Factory RIP (Dye Sublimation Edition)
  • GO SubliMate™ DX Ink--New Self-Dispersing Dye Technology (COMING SOON)
  • Complete Dye Sub Configurations Including Ink, Paper, RIP, Heat Presses, Calendar and Accessories
  • Limited One Year Warranty*
